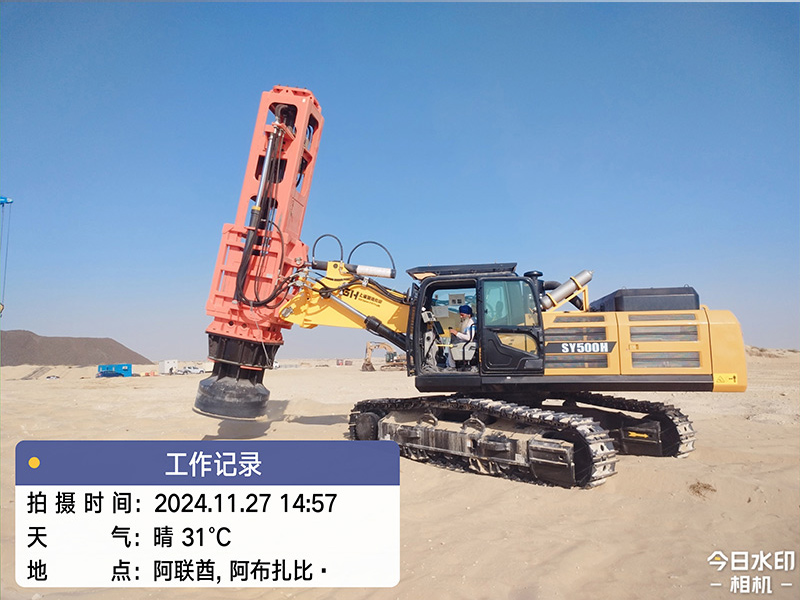

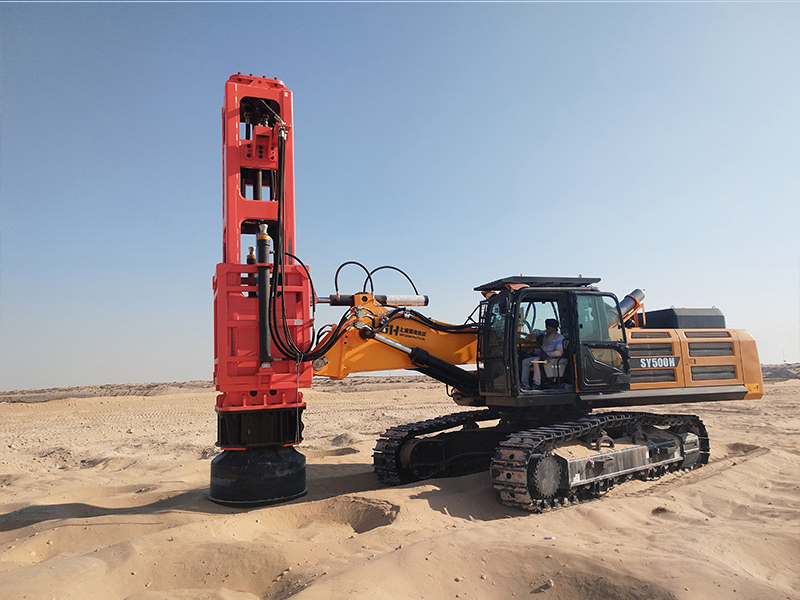

HC150 Rapid Impact Compactor is used in Abu Dhabi, UAE for compacting operations

Project Overview

HC150 Rapid Impact Compactor is used in Abu Dhabi, UAE for compacting operations, Excavator-mounted rapid impact equipment is effective for compacting the upper layers of ground typically up to a depth of 4-8 meters

RIC MODEL：HC150

Dropweight Mass：10000KG

Effective Depth：4m-8m

TOTAL WEIGHT：21.5 tons

Impact Energy：150KJ (150kN.m)

WORKING HEIGHT：6533mm

STANDARD TAMPING PLATE DIAMETER：1500mm

Hydraulic Pressure : 31.5 Mpa

Hydraulic Flow : 600 L/min

Compatible excavator：45-55t excavator converted boom (e.g., SUMITOMO SH490:VOLV EC480:CAT 349:)

Key Features

• 9-ton drop-weight RIC machine:HC108
• 10-ton drop-weight RIC machine:HC150
• 16-ton drop-weight RIC machine:HC240
• Rapid Impact Compactors have been exported to Saudi Arabia, the United Arab Emirates, Singapore, Indonesia, South Africa, Angola, and other countries.
• The most popular excavator-mounted hydraulic rapid impact compactors are the HC150
• The most commonly used model for wheel loader-mounted rapid impact compaction is the HC42

Content Summary

Excavator-mounted rapid impact equipment is effective for compacting the upper layers of ground typically up to a depth of 4-8 meters
