Four units of Rapid Impact Compaction HC150 have been successfully installed and commissioned at a site in Saudi Arabia

Project Overview

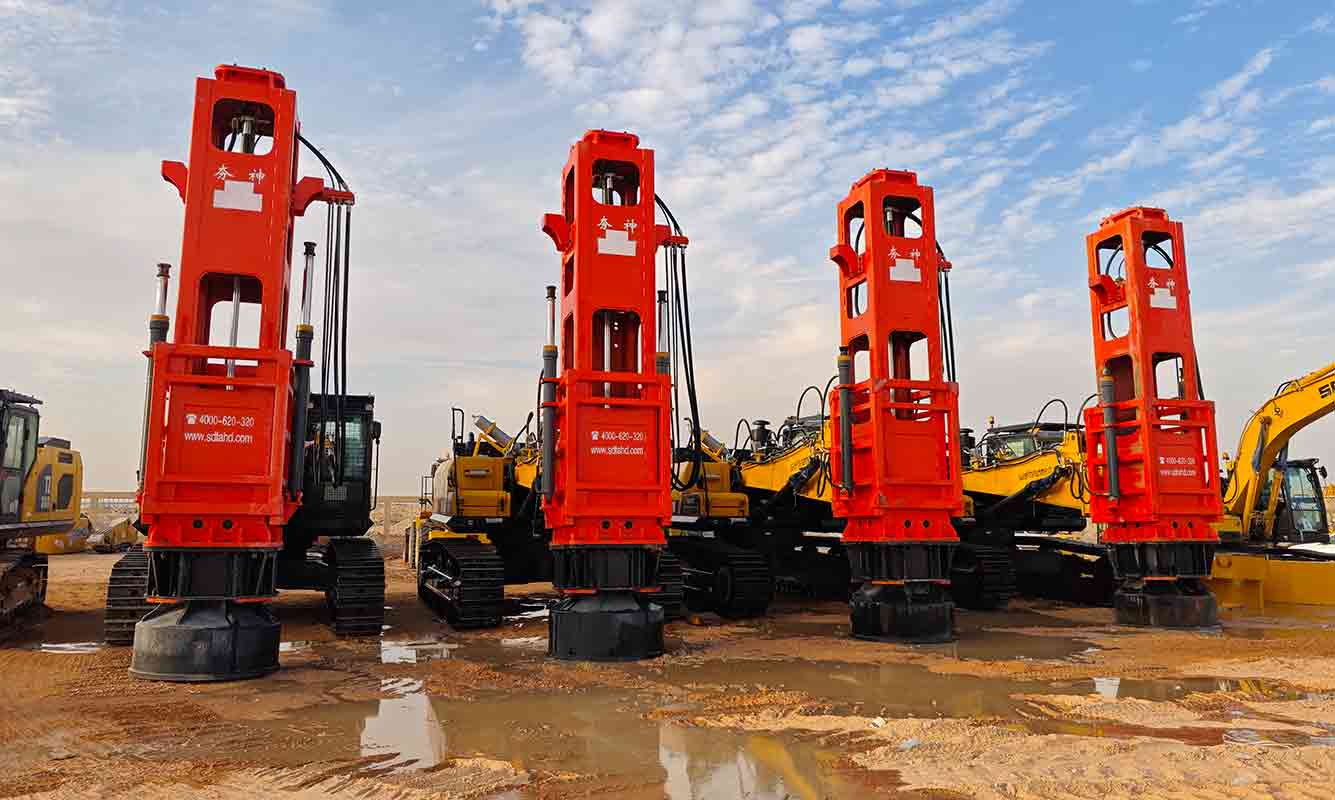

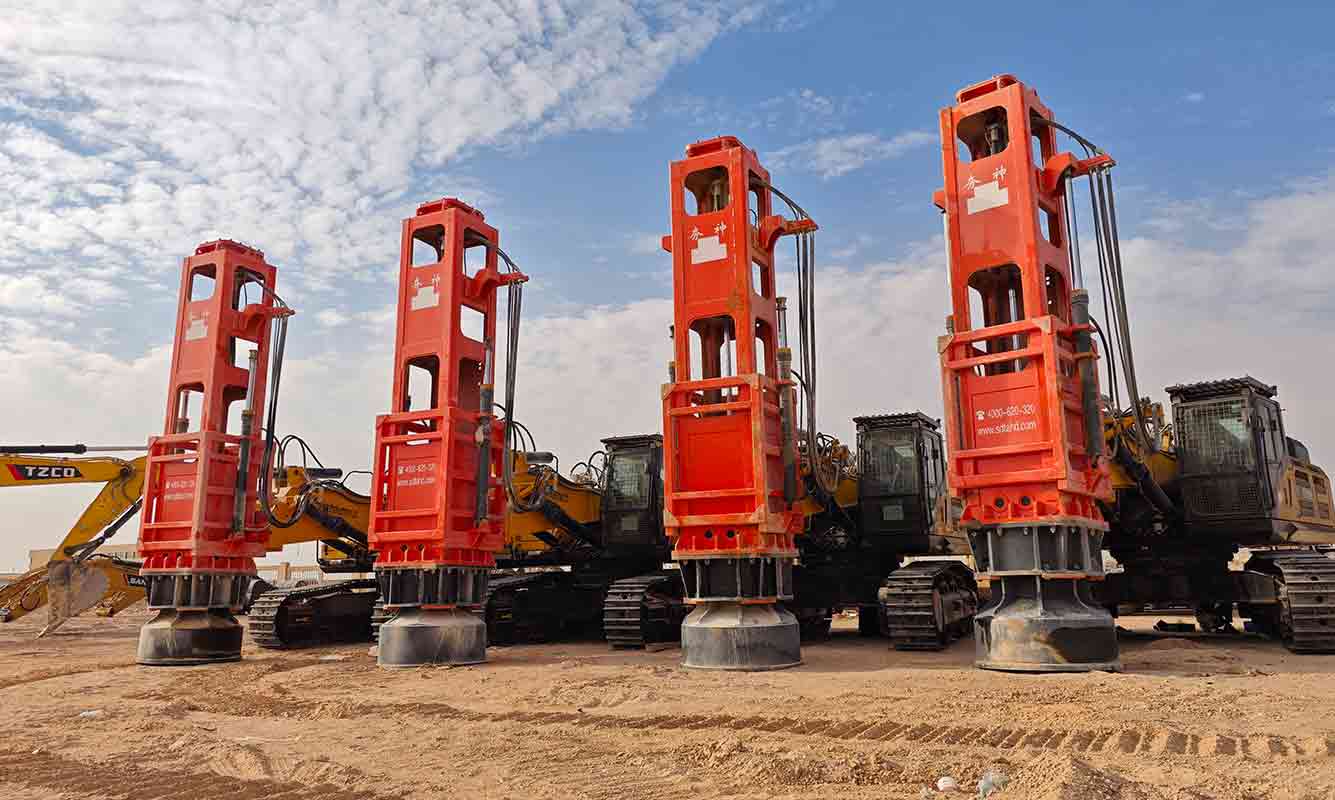

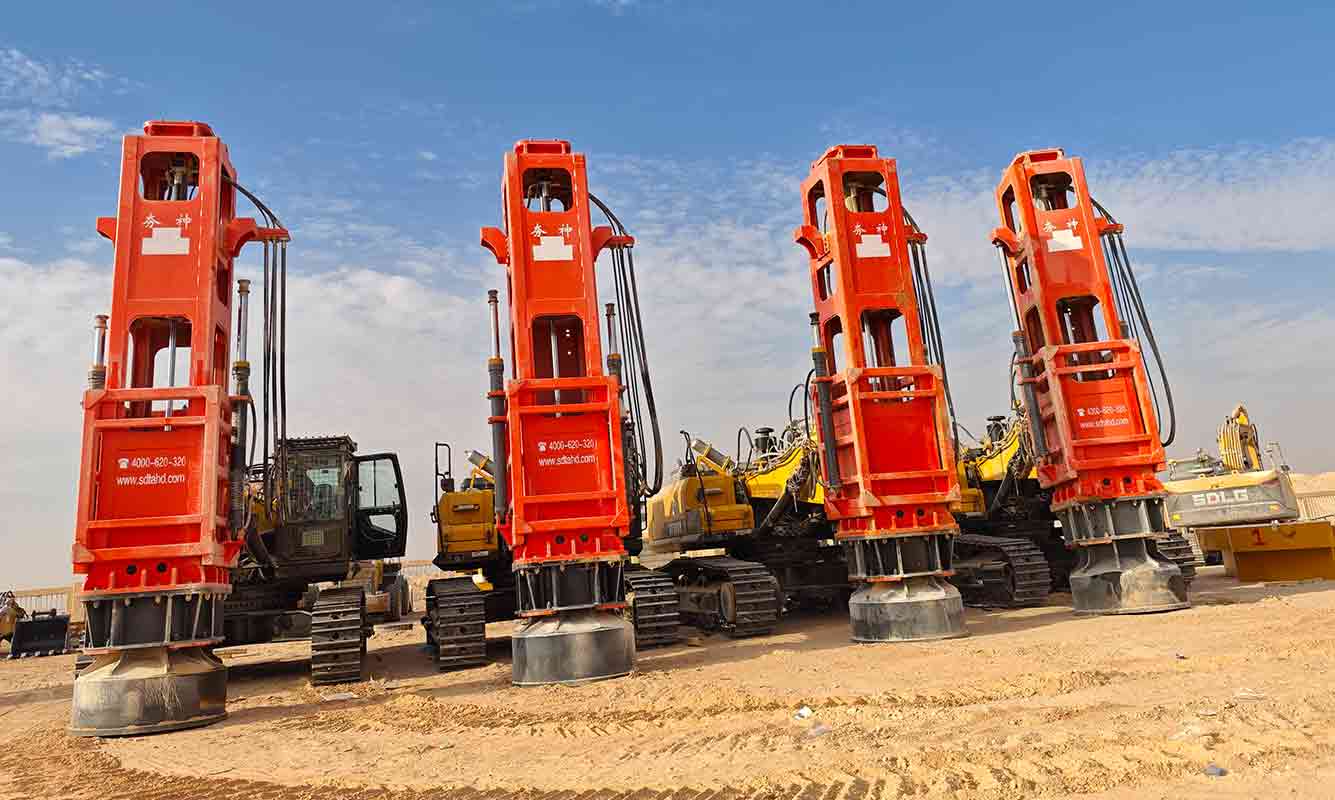

Four units of Rapid Impact Compaction HC150 have been successfully installed and commissioned at a site in Saudi Arabia! Each unit is equipped with a 10-ton drop weight.

RIC MODEL：HC150

Dropweight Mass：10000KG

Effective Depth：4m-8m

TOTAL WEIGHT：21.5 tons

Impact Energy：150KJ (150kN.m)

WORKING HEIGHT：6533mm

STANDARD TAMPING PLATE DIAMETER：1500mm

Hydraulic Pressure : 31.5 Mpa

Hydraulic Flow : 600 L/min

Compatible excavator：45-55t excavator converted boom

(e.g., SUMITOMO SH490:VOLV EC480:CAT 349:)

Rapid Impact Compaction is an advanced soil improvement technique used to increase bearing capacity and reduce settlement in shallow foundations, especially for roadbeds, embankments, and backfill areas.

Key Features

• 9-ton drop-weight RIC machine:HC108
• 10-ton drop-weight RIC machine:HC150
• 16-ton drop-weight RIC machine:HC240
• Rapid Impact Compactors have been exported to Saudi Arabia, the United Arab Emirates, Singapore, Indonesia, South Africa, Angola, and other countries.
• The most popular excavator-mounted hydraulic rapid impact compactors are the HC150
• The most commonly used model for wheel loader-mounted rapid impact compaction is the HC42

Content Summary

Rapid Impact Compaction is an advanced soil improvement technique used to increase bearing capacity and reduce settlement in shallow foundations, especially for roadbeds, embankments, and backfill are
