hydraulic Rapid Impact Compaction units have been installed and commissioned in Medina, Saudi Arabia

Project Overview

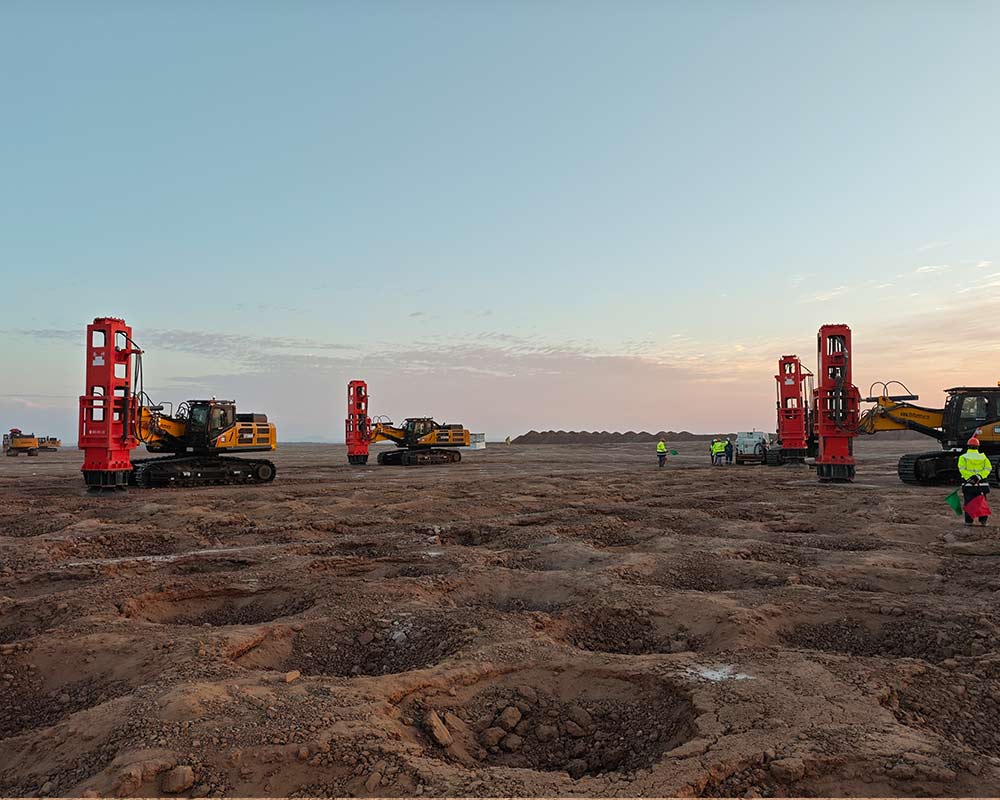

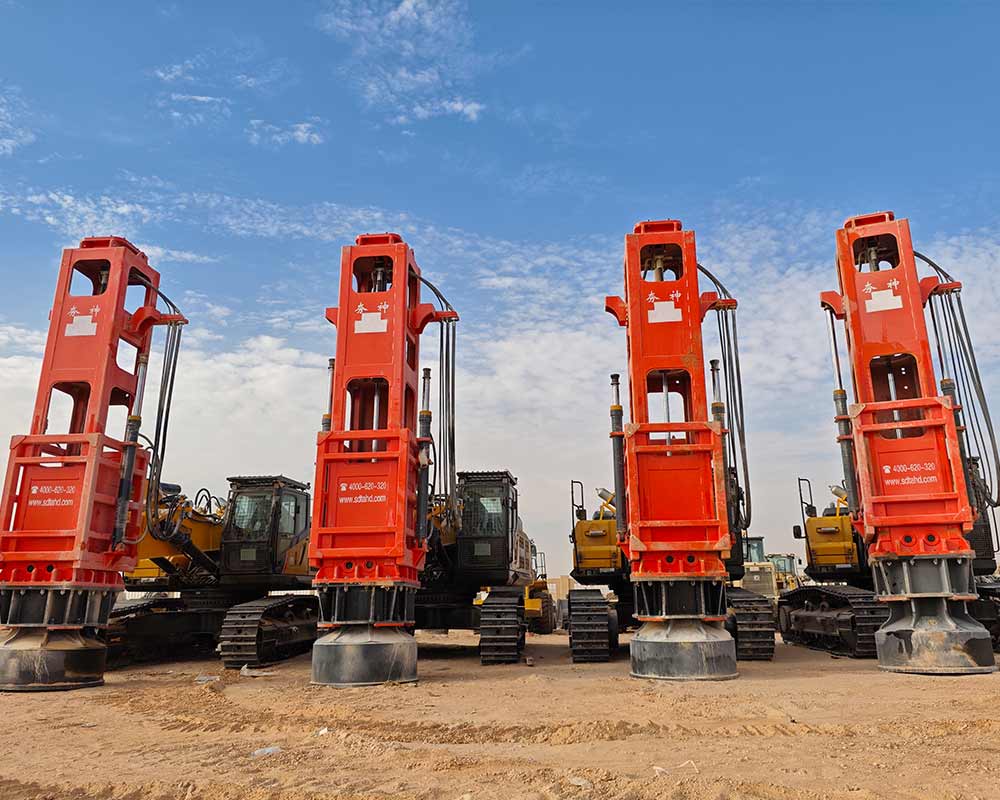

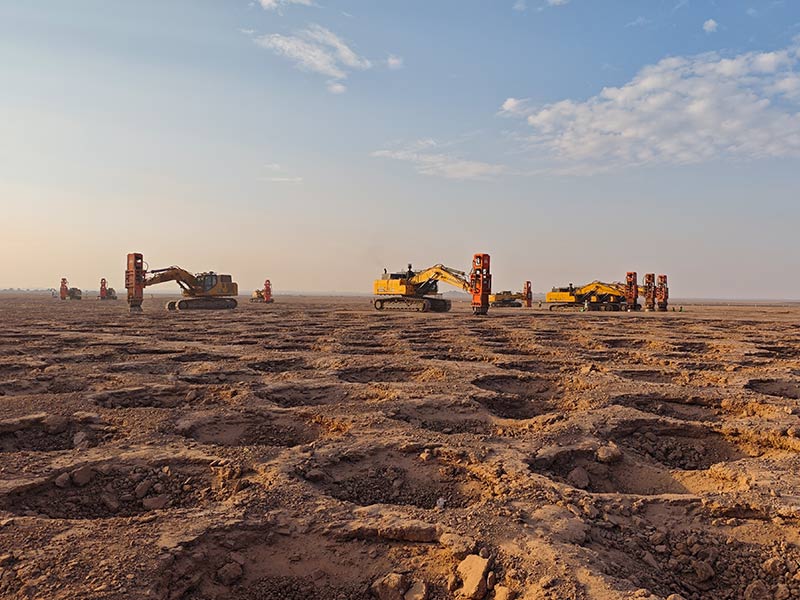

Ten HC150 hydraulic Rapid Impact Compaction units have been installed and commissioned to reinforce the foundation for infrastructure construction in Medina, Saudi Arabia. Each unit is equipped with a 10-ton drop hammer.

RIC MODEL：HC180

Dropweight Mass：12000KG

TOTAL WEIGHT：23.8 tons

Impact Energy：180KJ  (180kN.m)

WORKING HEIGHT：6838mm

Effective Depth：4m-8m

STANDARD TAMPING PLATE DIAMETER：1500mm

Hydraulic Pressure : 31.5 Mpa

Hydraulic Flow : 600 L/min

Compatible excavator：60t above excavator converted boom

(e.g., CAT374:SDLGE6600F:XCMGXE650GK;SanySY650H )

RIC MODEL：HC150

Dropweight Mass：10000KG

Effective Depth：4m-8m

TOTAL WEIGHT：21.5 tons

Impact Energy：150KJ (150kN.m)

WORKING HEIGHT：6533mm

STANDARD TAMPING PLATE DIAMETER：1500mm

Hydraulic Pressure : 31.5 Mpa

Hydraulic Flow : 600 L/min

Compatible excavator：45-55t excavator converted boom

(e.g., SUMITOMO SH490:VOLV EC480:CAT 349:)

Key Features

• 9-ton drop-weight RIC machine:HC108
• 10-ton drop-weight RIC machine:HC150
• 16-ton drop-weight RIC machine:HC240
• Rapid Impact Compactors have been exported to Saudi Arabia, the United Arab Emirates, Singapore, Indonesia, South Africa, Angola, and other countries.
• The most popular excavator-mounted hydraulic rapid impact compactors are the HC150
• The most commonly used model for wheel loader-mounted rapid impact compaction is the HC42

Content Summary

construction in Medina, Saudi Arabia
